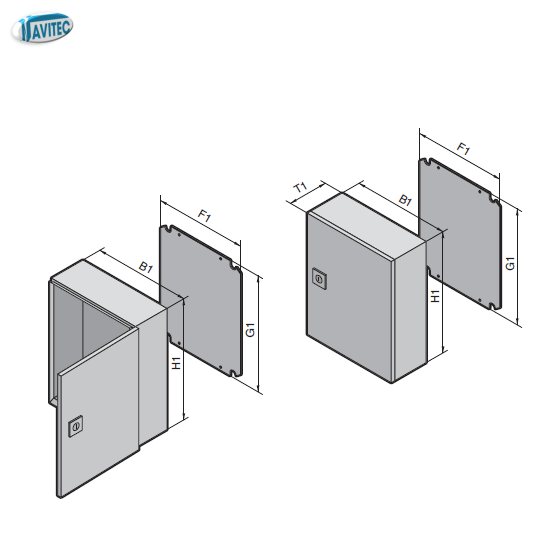

TỦ ĐIỆN AE DẠNG COMPACT- W:600-1000 x H:760-1400 RITTAL

- Kích thước Tủ

- Trọng lượng Tủ

- Vật liệu Tủ

• Sheet steel

• Enclosure: 1.5 mm

• Door: 2.0 mm

• Mounting plate: 3.0 mm

- Bề mặt Tủ

• Enclosure and door: Aluminium zinc coating, powder-coated in textured RAL 7035

• Mounting plate: Zinc-plated

- Protection category

• IP 55 to EN 60 529/09.2000, complies with NEMA 12.

• IP 66 to EN 60 529/09.2000, complies with NEMA 4 for AE 1260.500, AE 1280.500.

- Supply includes

• Enclosure of all-round solid construction, single-door: 1 gland plate, twin-door: 2 gland plates in the enclosure base, 3-point lock system, prepared for use of the Ergoform-S lock system, 2 cam locks for 1100.500, 1130.500, 1110.500, foamed-in door seal, zinc-plated mounting plate.

- Các phụ kiện khác

• Self-tapping screws

• Base/plinth

• Stainless steel rain canopy

• Gland plate

• Eyebolts

• Lock systems (Standard double-bit lock insert which may be exchanged for lock inserts 27 mm, type A), and for lock system Ergoform-S (not for 1100.500, 1130.500, 1110.500)

• etc...
