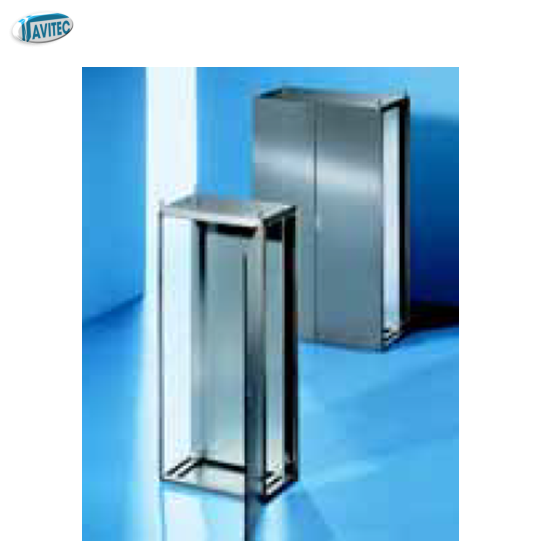

TỦ GHÉP TS8 - H 1200/1400, D 500 - RITTAL

- Kích thước Tủ

- Trọng lượng Tủ

- Vật liệu Tủ

• Sheet steel

• Enclosure frame, roof, rear panel and gland plates: 1.5 mm Door: 2.0 mm

• Mounting plate: 3.0 mm

- Bề mặt Tủ

• Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated in textured RAL 7035 on the outside

• Mounting plates and gland plates: Zinc-plated.

- Walls

• Side panels

• Divider panel

- Base/plinth

• Components front and rear

• Trim panels (sides)

- Protection category

    IP 55 to EN 60 529/09.2000, complies with NEMA 12.

- Supply includes

    Enclosure frame with doors, mounting plate, gland plates, rear panel and roof plate.

- Ngoài ra còn có các phụ kiện khác

• Cable clamp rails for cable clamps

• Cable clamp rails (C section) for cable clamps

• Support strips for door

• Wiring plan pocket, sheet steel

• Lock systems (Standard double-bit lock insert may be exchanged for lock inserts)

• Corner enclosures

• etc...
