Application

• High-performance machine tools

• Machines with stringent requirements in terms of dynamic performance and precision, e.g.:

- Packaging machines

- Foil extractor machines

- Printing machines

- Handling equipment

1. Lựa chọn mã đặt hàng mottor servo :

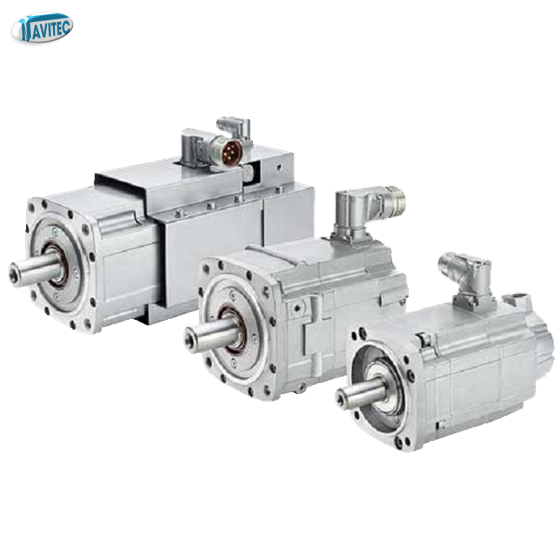

Rated speed (rpm)	Shaft height	Rated power (kw)	Static torque (Nm)	Rated torque (Nm)	Rated current (A)	SIMOTICS S-1FT7 Compact synchronous motors
2000	80	5	27	24	13.5	1FT7084-5SC7	□	-1	□	□	□
		6.7	36	32	17	1FT7086-5SC7	□	-1	□	□	□
	100	11.7	65	56	29	1FT7105-5SC7	□	-1	□	□	□
		15.3	91	73	33	1FT7108-5SC7	□	-1	□	□	□
3000	80	7.2	27	23	18.5	1FT7084-5SF7	□	-1	□	□	□
		9.1	36	29	24	1FT7086-5SF7	□	-1	□	□	□
	100	15.1	65	48	35	1FT7105-5SF7	□	□	□	□	□
		18.8	91	60	38	1FT7108-5SF7	□	□	□	□	□
4500	80	9.9	27	21	24.5	1FT7084-5SH7	□	-1	□	□	□
		11.8	36	25	25	1FT7086-5SH7	□	-1	□	□	□
With DRIVE-CLiQ interface / Flange / Classic (compatible with 1FT6/1FK7)							1
With DRIVE-CLiQ interface / Flange / Recessed (more compact)							0
With DRIVE-CLiQ interface / Encoder / AS24DQI encoder / RJ45 signal connection									B
With DRIVE-CLiQ interface / Encoder / AM24DQI encoder / RJ45 signal connection									C
Without DRIVE-CLiQ interface / Flange / Classic (compatible with 1FT6/1FK7)							4
Without DRIVE-CLiQ interface / Flange / Recessed (more compact)							5
Without DRIVE-CLiQ interface / Encoder / IC2048S/R encoder / M23 signal connection									N
Without DRIVE-CLiQ interface / Encoder / AM2048S/R encoder / M23 signal connection									M
Connector outlet direction: Connector sizes 1 and 1.5 / Rotatable connector								1
Connector outlet direction: Connector sizes 3 / Transverse right								1
Connector outlet direction: Connector sizes 3 / Transverse left								2
Connector outlet direction: Connector sizes 3 / Axial NDE								3
Connector outlet direction: Connector sizes 3 / Axial DE								4
Terminal box/ cable entry : Top/transverse from right								5
Terminal box/ cable entry : Top/transverse from left								6
Terminal box/ cable entry : Top/axial from NDE								7
Terminal box/ cable entry : Top/axial from DE								8
Feather key and keyway / Shaft and flange accuracy Tolerance N / Holding brake Without										A
Feather key and keyway / Shaft and flange accuracy Tolerance N / Holding brake With										B
Feather key and keyway / Shaft and flange accuracy Tolerance R / Holding brake Without										D
Feather key and keyway / Shaft and flange accuracy Tolerance R / Holding brake With										E
Shaft extension Plain shaft / Shaft and flange accuracy Tolerance N / Holding brake Without										G
Shaft extension Plain shaft / Shaft and flange accuracy Tolerance N / Holding brake With										H
Shaft extension Plain shaft / Shaft and flange accuracy Tolerance R / Holding brake Without										K
Shaft extension Plain shaft / Shaft and flange accuracy Tolerance R / Holding brake With										L
Vibration severity Grade A / IP 64											0
Vibration severity Grade A / IP 65											1
Vibration severity Grade R / IP 64											3
Vibration severity Grade R / IP 65											4

2. Lựa chọn Option -Z, tùy chọn này có thể khóa chéo lẫn nhau hay khóa chéo với code mã mottor chính :

Order code	Description
J..	Mounting of SP+ planetary gearbox (see SIMOTICS s geared motcKs)
K20	Reinforced bearing with transverse forces as specified in the latest configuration manual (S-1FT7 Compact only, in conjunction with flange compatible with S-1FT6/S-1FT7)
L03	Version for increased vibration stress (information about validity and specification can be found in the latest configuration manual)
N05	Alternative shaft geometry
N16	Version for increased chemical resistance
N40	Stainless-steel shaft and coating for increased chemical resistance (information about validity and specification can be found in the latest configuration manual)
Q12	Sealing air connection (Only in conjunction with degree of protection IP67. Not in combination with terminal box)
Y84	Customer specifications on rating plate (max. 30 characters)^3JPaint finish
K23	Special paint finish for ’Worldwide' climate group: Primer and paint finish: Anthracite RAL 7016
K23+X..	Special paint finish for ’Worldwide' climate group: Primer and other paint finish can De selected from X01 10 X09
K24	Primed (unpainted)
X01	Paint finish: Jet black, matt RAL 9005
X02	Paint finish: Cream white RAL 9001
X03	Paint finish: Reseda green RAL 6011
X04	Paint finish: Pebble gray RAL 7032
X05	Paint finish: Sky blue RAL 5015
X06	Paint finish: Light ivory RAL 1015
X08	Paint finish: White aluminum
X09	Paint finish: Anthracite RAL 7016

3. Lựa chọn biến tần S120 mottor module + Power cáp, đồng bộ theo mottor servo.

SIMOTICS S-1FT7	Booksize format Internal air cooling For other components, see SINAMICSS120 drive system			Pre-assembled cable
1FT7084-5SC7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N26	…
1FT7086-5SC7	6SL3120-	1	TE23-0AD.	6FX	□	002-5	□	N36	…
1FT7105-5SC7	6SL3120-	1	TE24-5AA.	6FX	□	002-5	□	N54	…
1FT7108-5SC7	6SL3120-	1	TE24-5AA.	6FX	□	002-5	□	N64	…
1FT7084-5SF7	6SL3120-	1	TE23-0AD.	6FX	□	002-5	□	N36	…
1FT7086-5SF7	6SL3120-	1	TE23-0AD.	6FX	□	002-5	□	N56	…
1FT7105-5SF7	6SL3120-	1	TE24-5AA.	6FX	□	002-5	□	S14	…
1FT7108-5SF7	6SL3120-	1	TE26-0AA.	6FX	□	002-5	□	S23	…
1FT7084-5SH7	6SL3120-	1	TE23-0AD.	6FX	□	002-5	□	N56	…
1FT7086-5SH7	6SL3120-	1	TE24-5AA.	6FX	□	002-5	□	N54	…
	Single Motor Module	1		MOTION-CONNECT 800PLUS	8
	Double Motor Module	2		MOTION-CONNECT 500	5
	Version status		.	Without brake cores			C
				With brake cores			D
				Length code					…
