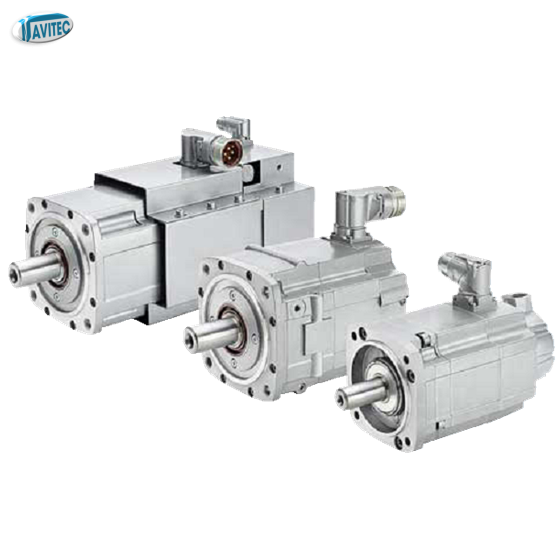

Application

• Machine tools

• Robots and handling systems

• Wood, glass, ceramic, and stone working

• Packaging, plastic, and textile machines

• Printing machines

• Auxiliary axes

1. Lựa chọn mã đặt hàng mottor servo :

Rated speed (rpm)	Shaft height	Rated power (kw)	Static torque (Nm)	Rated torque (Nm)	Rated current (A)	SIMOTICS S-1FT7 Compact synchronous motors
2000	48	0.6	3	2.8	1.55	1FK7042-2AC7	□	-1	□	□	□
	63	1.1	6	5.3	2.95	1FK7060-2AC7	□	-1	□	□	□
		1.5	8.5	7	2.65	1FK7062-2AC7	□	-1	□	□	□
		1.9	11	8.9	4.4	1FK7063-2AC7	□	-1	□	□	□
	80	2.1	12	10	4.4	1FK7081-2AC7	□	-1	□	□	□
		2.6	16	12.5	6.3	1FK7083-2AC7	□	-1	□	□	□
		3.1	20	15	6.7	1FK7084-2AC7	□	-1	□	□	□
	100	3	18	14.5	7.1	1FK7100-2AC7	□	-1	□	□	□
		4.3	27	20.5	9.7	1FK7101-2AC7	□	-1	□	□	□
		5.2	36	25	11.0	1FK7103-2AC7	□	-1	□	□	□
		7.7	48	37	16.0	1FK7105-2AC7	□	-1	□	□	□
3000	48	0.8	3	2.6	2.0	1FK7042-2AF7	□	-1	□	□	□
	63	1.5	6	4.7	3.7	1FK7060-2AF7	□	-1	□	□	□
		1.9	8.5	6	4.0	1FK7062-2AF7	□	-1	□	□	□
		2.3	11	7.3	5.6	1FK7063-2AF7	□	-1	□	□	□
	80	2.1	8	6.8	4.4	1FK7080-2AF7	□	-1	□	□	□
		2.7	12	8.7	6.8	1FK7081-2AF7	□	-1	□	□	□
		3.3	16	10.5	7.2	1FK7083-2AF7	□	-1	□	□	□
		3.1	20	10	6.5	1FK7084-2AF7	□	-1	□	□	□
	100	3.8	18	12	8.0	1FK7100-2AF7	□	-1	□	□	□
		4.9	27	15.5	11.6	1FK7101-2AF7	□	-1	□	□	□
		4.4	36	14	11.5	1FK7103-2AF7	□	-1	□	□	□
		8.2	48	26	18.0	1FK7105-2AF7	□	-1	□	□	□
4500	63	1.7	6	3.7	4.3	1FK7060-2AH7	□	-1	□	□	□
		1.4	8.5	3	3.3	1FK7062-2AH7	□	-1	□	□	□
		1.4	11	3	3.8	1FK7063-2AH7	□	-1	□	□	□
	80	2.1	8	4.5	4.8	1FK7080-2AH7	□	-1	□	□	□
		1.8	12	3.8	4.9	1FK7081-2AH7	□	-1	□	□	□
		1.4	16	3	3.6	1FK7083-2AH7	□	-1	□	□	□
6000	36	0.5	1.15	0.8	1.3	1FK7032-2AK7	□	-1	□	□	□
		0.6	1.6	1	1.3	1FK7034-2AK7	□	-1	□	□	□
	48	0.7	1.6	1.1	1.85	1FK7040-2AK7	□	-1	□	□	□
		0.9	3	1.5	2.5	1FK7042-2AK7	□	-1	□	□	□
Encoder systems for motors without DRIVE-CLiQ interface: IC2048S/R encoder							4		A
Encoder systems for motors without DRIVE-CLiQ interface: AM2048S/R encoder							4		E
Encoder systems for motors without DRIVE-CLiQ interface: Multi-pole resolver							4		S
Encoder systems for motors without DRIVE-CLiQ interface: 2-pole resolver							4		T
Encoder systems for motors withDRIVE-CLiQ interface: AS24DQI encoder							1		B
Encoder systems for motors withDRIVE-CLiQ interface: AM24DQI encoder							1		C
Encoder systems for motors withDRIVE-CLiQ interface: AS20DQI encoder							1		Q
Encoder systems for motors withDRIVE-CLiQ interface: AM20DQI encoder							1		R
Encoder systems for motors withDRIVE-CLiQ interface: R15DQ resolver							1		U
Encoder systems for motors withDRIVE-CLiQ interface: R14DQ resolver							1		P
Feather key and keyway / Shaft and flange accuracy Tolerance N / Holding brake Without										A
Feather key and keyway / Shaft and flange accuracy Tolerance N / Holding brake With										B
Shaft extension Plain shaft / Shaft and flange accuracy Tolerance N / Holding brake Without										G
Shaft extension Plain shaft / Shaft and flange accuracy Tolerance N / Holding brake With										H
Degree of protection: IP 64											0
Degree of protection: IP 65											1
Degree of protection: IP 66 and DE flange IP67											2

2. Lựa chọn Option -Z, tùy chọn này có thể khóa chéo lẫn nhau hay khóa chéo với code mã mottor chính :

Order code	Description
J..	Mounting of SP+ planetary gearbox (see SIMOTICS s geared motors)
M03	Version for potentially explosive atmospheres Zone 2 in accordance with EN 50021/IEC 60079-15
M39	Version for potentially explosive atmospheres Zone 22 in accordance with EN 50281/1EC 61241-1
N05	Alternative shaft geometry
N16	Version for increased chemical resistance
N24	Reinforced brake ¹⁾
Q31	Metal rating plate instead of adhesive label
V..	Mounting of planetary gearbox LP+ (see SIMOTICS s geared motors)
K23	Special paint finish for "Worldwide" climate group: Primer and paint finish: Anthracite RAL 7016
K23+X..	Special paint finish for "Worldwide" climate group: Primer and other paint finish can be selected from X01 to X27
K24	Primer (without paint finish)²⁾
X01	Paint finish: Jet black, matt RAL 9005 ³⁾
X02	Paint finish: Cream white RAL 9001 ³⁾
X03	Paint finish: Reseda g'een RAL 6011 ³⁾
X04	Paint finish: Pebble grey RAL 7032 ³⁾
X05	Paint finish: Sky blue RAL 5015 ³⁾
X06	Paint finish: Pale ivory RAL 1015 ³⁾
X08	Paint finish: Suitable for food grade applications White aluminum RAL 9006 ³⁾
X27	Paint finish: Dark pearl grey RAL 9023 ³⁾

3. Lựa chọn biến tần S120 mottor module + Power cáp, đồng bộ theo mottor servo.

SIMOTICS S-1FT7	SINAMICS S120 Motor Module, booksize format			Pre-assembled cable
1FK7042-2AC7	6SL3120-	□	TE13-0AD.	6FX	□	002-5	□	N06	…
1FK7060-2AC7	6SL3120-	□	TE13-0AD.	6FX	□	002-5	□	N06	…
1FK7062-2AC7	6SL3120-	□	TE13-0AD.	6FX	□	002-5	□	N06	…
1FK7063-2AC7	6SL3120-	□	TE15-0AD.	6FX	□	002-5	□	N06	…
1FK7081-2AC7	6SL3120-	□	TE15-0AD.	6FX	□	002-5	□	N06	…
1FK7083-2AC7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7084-2AC7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7100-2AC7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7101-2AC7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N26	…
1FK7103-2AC7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N26	…
1FK7105-2AC7	6SL3120-	1	TE23-0AD.	6FX	□	002-5	□	N36	…
1FK7042-2AF7	6SL3120-	□	TE13-0AD.	6FX	□	002-5	□	N06	…
1FK7060-2AF7	6SL3120-	□	TE15-0AD.	6FX	□	002-5	□	N06	…
1FK7062-2AF7	6SL3120-	□	TE15-0AD.	6FX	□	002-5	□	N06	…
1FK7063-2AF7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7080-2AF7	6SL3120-	□	TE15-0AD.	6FX	□	002-5	□	N06	…
1FK7081-2AF7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7083-2AF7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N06	…
1FK7084-2AF7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N06	…
1FK7100-2AF7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N06	…
1FK7101-2AF7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N36	…
1FK7103-2AF7	6SL3120-	1	TE23-0AD.	6FX	□	002-5	□	N46	…
1FK7105-2AF7	6SL3120-	1	TE23-0AD.	6FX	□	002-5	□	N56	…
1FK7060-2AH7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7062-2AH7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7063-2AH7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N06	…
1FK7080-2AH7	6SL3120-	□	TE21-0AD.	6FX	□	002-5	□	N06	…
1FK7081-2AH7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N06	…
1FK7083-2AH7	6SL3120-	□	TE21-8AD.	6FX	□	002-5	□	N06	…
1FK7032-2AK7	6SL3120-	□	TE13-0AD.	6FX	□	002-5	□	N06	…
1FK7034-2AK7	6SL3120-	□	TE13-0AD.	6FX	□	002-5	□	N06	…
1FK7040-2AK7	6SL3120-	□	TE13-0AD.	6FX	□	002-5	□	N06	…
1FK7042-2AK7	6SL3120-	□	TE15-0AD.	6FX	□	002-5	□	N06	…
	Single Motor Module	1		MOTION-CONNECT 800PLUS	8
	Double Motor Module	2		MOTION-CONNECT 500	5
	Version status		.	Without brake cores			C
				With brake cores			D
			.	Length code					…
